| NO. | Introduction | Impact energy | Main application |
| 1 | Single energy | 0.14±0.01J | Mobile phone screen impact test |
| 2 | Single energy | 0.2±0.02J | Glass and electric meter shell impact test |
| 3 | Single energy | 0.35±0.03J | Lamps impact test |
| 4 | Single energy | 0.5±0.04J | Plastic shellimpact test |
| 5 | Single energy | 0.7±0.05J | Products of the toy industry impact test |
| 6 | Single energy | 1.0±0.05J | water pump products impact test |
| 7 | Single energy | 2.0±0.10J | electric tools and other products shell impact test |
| 8 | Six energies | 0.14J—1.0J | universal type (used in various industries) |
Length:211mm
Weight:1250g
OD : 50mm
Hammer Weight :60g
Hammer Radius:10mm
The release force of impact: <10N
Impact Components: Including the hit ball handle the hammer ,weight 250g
Hammer head is made from white polyethylene imine first
Types: Spring Operated Impact Hammer/0.14J/0.20J/0.35J/0.50J/0.70J/1.00J/ 2.0J
|
NO. |
Introduction |
Impact energy |
Main application |
|
1 |
Single energy |
0.14±0.01J |
Mobile phone screen impact test |
|
2 |
Single energy |
0.2±0.02J |
Glass and electric meter shell impact test |
|
3 |
Single energy |
0.35±0.03J |
Lamps impact test |
|
4 |
Single energy |
0.5±0.04J |
Plastic shellimpact test |
|
5 |
Single energy |
0.7±0.05J |
Products of the toy industry impact test |
|
6 |
Single energy |
1.0±0.05J |
water pump products impact test |
|
7 |
Single energy |
2.0±0.10J |
electric tools and other products shell impact test |
|
8 |
Six energies |
0.14J—1.0J |
universal type (used in various industries) |

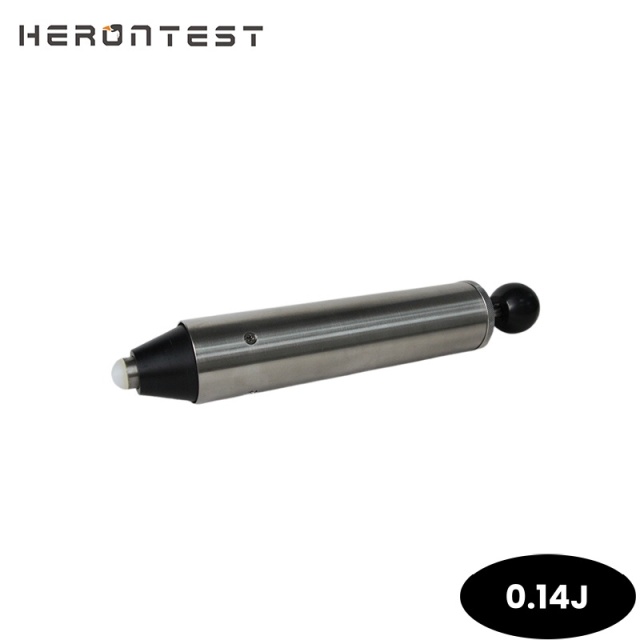

Spring impact hammer is designed according to the IEC60068-2-75 for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of enclosure of electrical products under the condition of external mechanical forces.
It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.
Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.
