Parameters:
1. Rigid finger diameter: 12 mm
2. Straight pointing length: 80mm
3. Diameter of baffle: 50mm
4. Thickness of baffle: 5mm
5. Reference standards: IEC61032 Figure 7, IEC60335

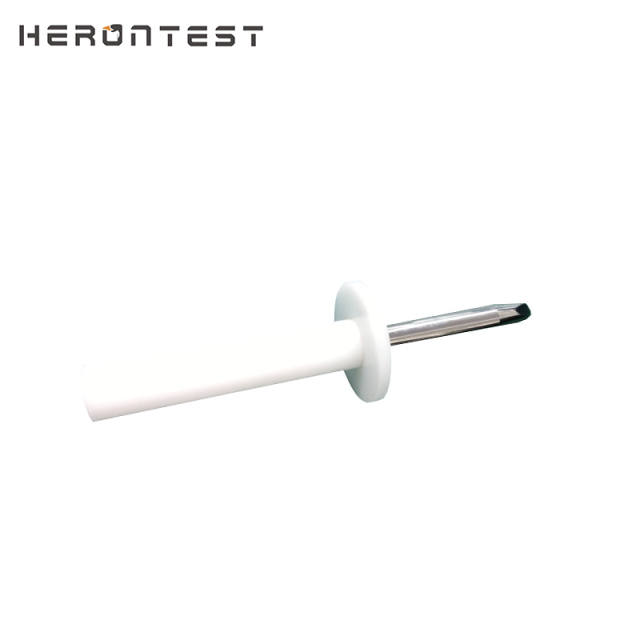

IEC60529 IEC61032 Test Probe 11 Rigid Access Probe
Test Probe 11 is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the mechanical strength of openings in the enclosure of internal barriers.

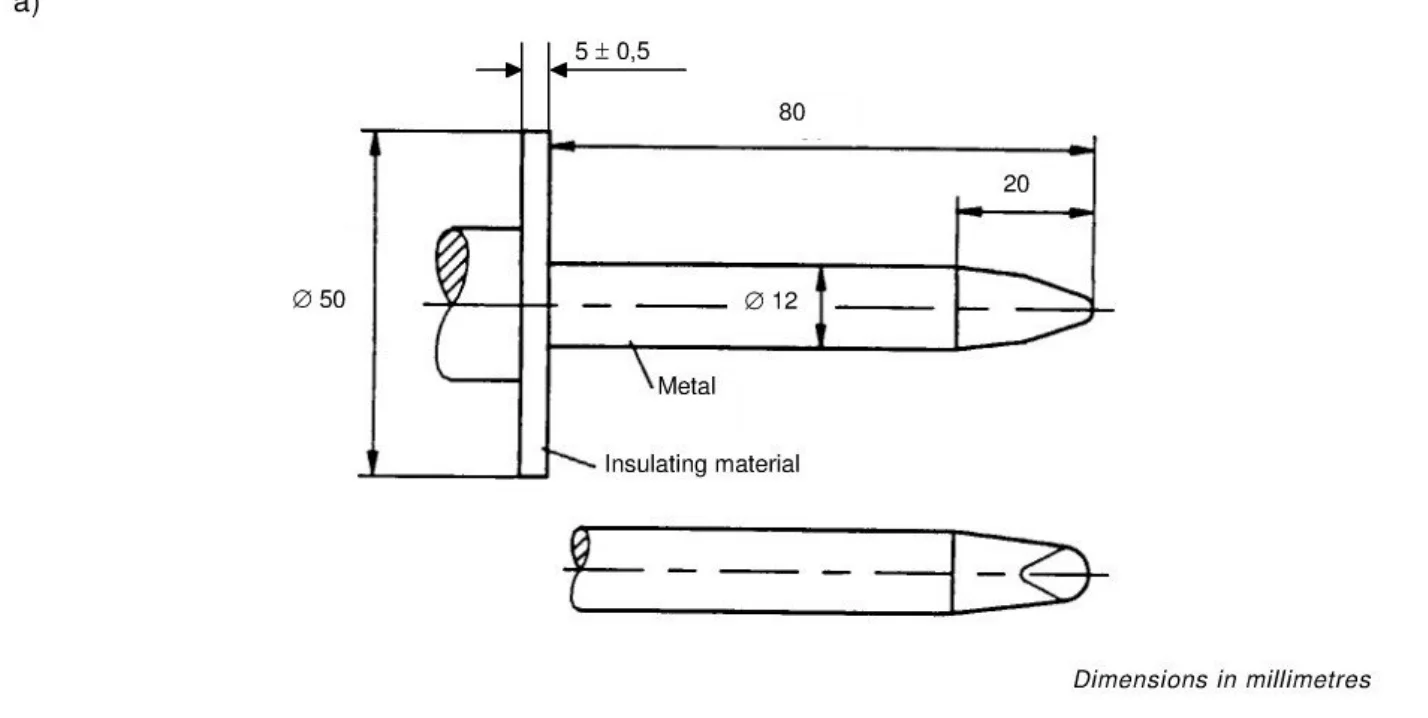

Technical Parameters:
1. Rigid finger diameter: 12 mm
2. Straight pointing length: 80mm
3. Diameter of baffle: 50mm
4. Thickness of baffle: 5mm
5. Reference standards: IEC61032 Figure 7, IEC60335
