The IPX6 tester is used to spray with water from all directions. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.

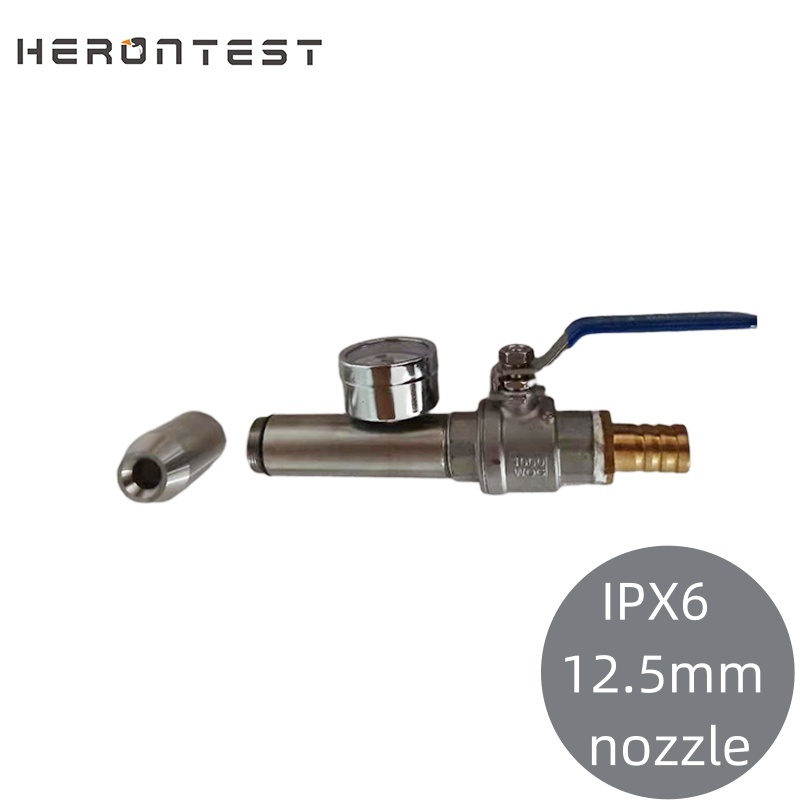

The tester consists of a pipe and a nozzle, which the pipe is also equipped with a pressure gauge and handle. The nozzles is replaceable, you can switch ipx5 nozzle or ipx6 nozzle according to your test requirement.
Introduction:
The IPX5/IPX6 tester is used to spray with water from all directions. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.
The tester consists of a pipe and a nozzle, which the pipe is also equipped with a pressure gauge and handle. The nozzles is replaceable, you can switch ipx5 nozzle or ipx6 nozzle according to your test requirement.
1. Material: Stainless steel nozzle
2. IPX6 nozzle diameter: 12.5mm
3. IPX6 water flow rate: 100±5L/min (suggest to use with pressure pump)
4. Conformance standards: IEC60529, IEC60335, IEC60598
5.Test distance to sample: 250mm-300mm
