1. Material: Nickel/Chromium(80/20) Alloy
2. Diameter: 4mm (Tolerance 0.04mm)
3. Length: 80mm
4. Thermocouple fit: 0.55mm/1.00mm hole

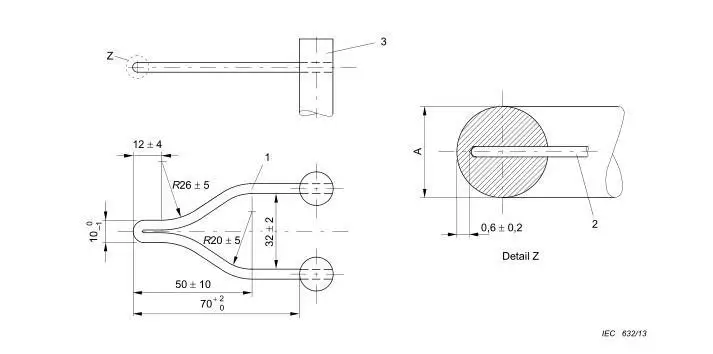

5. Standard: IEC60695-2-10 Figure 1

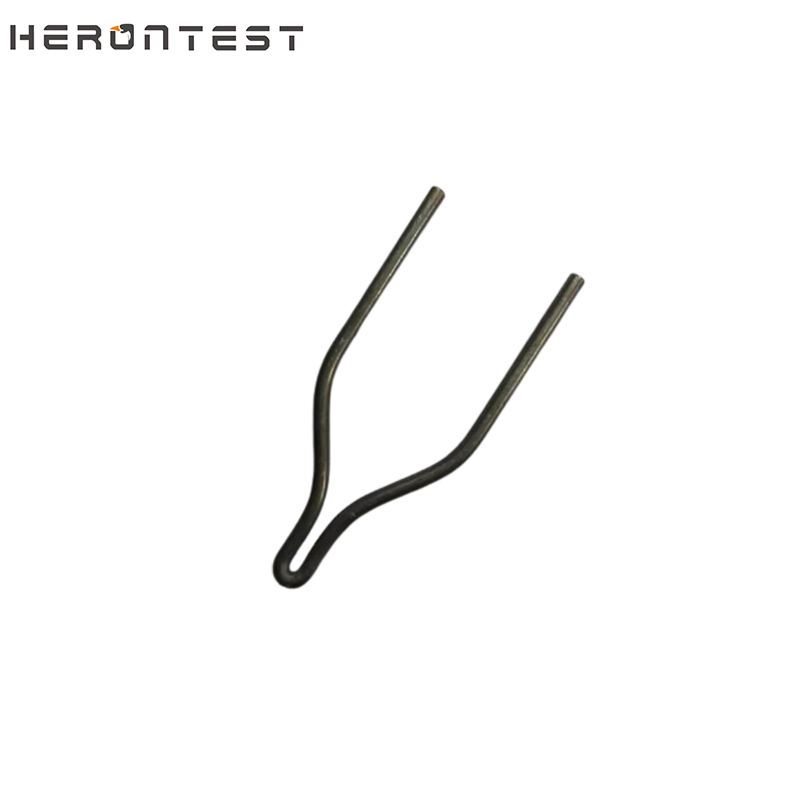

IEC60695 Glow Wire Replacement Element U Shape Glow Wire Loop
Specification:
1. Material: Nickel/Chromium(80/20) Alloy
2. Diameter: 4mm (Tolerance 0.04mm)
3. Length: 80mm
4. Thermocouple fit: 0.55mm/1.00mm hole
5. Standard: IEC60695-2-10 Figure 1
Appliance:
The glow wire loop for thermo resistance test is mainly used in Glow Wire Tester.
